The Problem

We want to receive live updates from an external source while maintaining and using the auto-generated AWS Amplify code.

Overview

AWS Amplify goes a long way to assist us by auto-generating code to allow an application to query, mutate and subscribe to changes. We will use the default schema and their resolvers to allow for a custom resolver to handle data from an external source.

Let's begin

This is the plan of action.
1. Setup a new react-native project
2. AWS Amplify install and configure
3. GraphQL schema

4. Subscriptions from an external data source
5. AWS CloudFormation
6. The Lambda
7. AWS Amplify - Schema - Resolvers
8. Push data to test

React-native init and setup

The prerequisites and installation details are here:https://reactnative.dev/docs/getting-started

AWS Amplify install and configure

This is assuming you have installed and initialised AWS Amplify. This will not cover that process as it’s a common operation and the process is covered in detail here: https://docs.amplify.aws/cli/start/install

GraphQL Schema

For the purpose of this demo, we’ll have a very simple schema:

type Alarm @model {
  id: String
  name: String!
  state: String
}

The schema can be found in the root of the project. Once we make our change we can push it to auto-generate the code we need

./amplify/backend/api/<apiname>/schema.graphql

then run:

amplify push

This will take the schema and generate the necessary code for queries, mutations and subscriptions.

The part we are interested in are the subscriptions.

Subscriptions is a GraphQL feature allowing the server to send data to its clients when a specific event happens. You can enable real-time data integration in your app with a subscription

The following code demonstrates how to reference the auto-generated subscription code and subscribe to the onUpdateAlarm subscription in our react-native code.

Note: complete react-native code is not listed here. Once we have the alarms in our useState, we can use that in whatever manner we choose e.g. display in a FlatList.

import * as subscriptions from '../../graphql/subscriptions';

// hook for alarms
const [alarms, setAlarms] = useState([]);

useEffect(() => {
   const subscription = API.graphql(
      graphqlOperation(subscriptions.onUpdateAlarm),
   ).subscribe({
      next: (data) => {
         // get the updated alarm
         const updatedAlarm = data.value.data.onUpdateAlarm;
         // update the alarm in our map
         let result = alarms.map((item) =>
            item.id === updatedAlarm.id ? updatedAlarm : item,
         );
         // update state using hook
         setAlarms(result);
       },
     });
   // we're done, let's unsubscribe
   return () => subscription.unsubscribe();
}, [alarms]);

At this point, we are subscribing to changes in a local AWS DynamoDB table.

What we want to do is subscribe to changes in a different database/datasource.

Subscriptions from an external data source

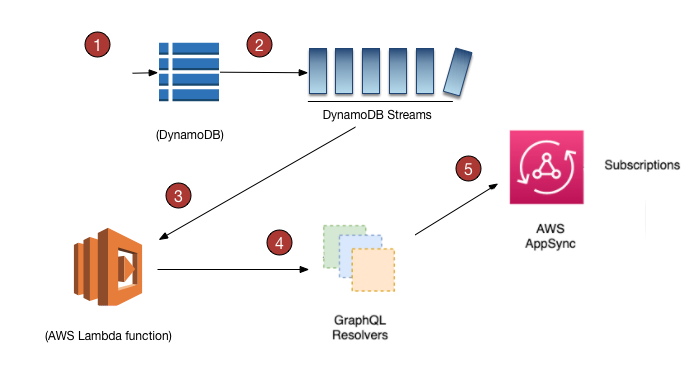

Let’s begin with an overview:

Data is added to the DynamoDB table
DB has streams enabled
Records are streams into an AWS Lambda Fn
The Fn will call a resolver mutation
The mutation is configured to respond to the default subscriptions

AWS CloudFormation

Points 1, 2, and 3 are set up using the following AWS CloudFormation script:

AWSTemplateFormatVersion: 2010-09-09
Resources:
  # The dynamo db. Streams enabled
  demoAlarmDynamoDBTable:
    Type: AWS::DynamoDB::Table
    Properties:
      AttributeDefinitions:
        - AttributeName: "alarmId"
          AttributeType: "S"
        - AttributeName: "datetime"
          AttributeType: "S"
        - AttributeName: "readingId"
          AttributeType: "S"
      BillingMode: PAY_PER_REQUEST
      KeySchema:
        - AttributeName: "alarmId"
          KeyType: "HASH"
        - AttributeName: "datetime"
          KeyType: "RANGE"
      GlobalSecondaryIndexes:
        - IndexName: "GSI"
          KeySchema:
            - AttributeName: "readingId"
              KeyType: "HASH"
          Projection:
            ProjectionType: "ALL"
      StreamSpecification:
        StreamViewType: NEW_AND_OLD_IMAGES
      TableName: "DemoAlarms"
  # The Role. The role is used for the lambda
  demoAlarmsRole:
    Type: AWS::IAM::Role
    Properties:
      RoleName: DemoAlarmsLambdaRole
      AssumeRolePolicyDocument:
        Statement:
          - Effect: Allow
            Principal:
              Service: lambda.amazonaws.com
            Action: sts:AssumeRole
  # The Policy. Used by lambda and for logging to CloudWatch
  DemoAlarmsManagedPolicy:
    Type: 'AWS::IAM::Policy'
    Properties:
      PolicyName: DemoAlarmsPolicy
      Roles:
        - DemoAlarmsLambdaRole
      PolicyDocument:
        Version: '2012-10-17'
        Statement:
          - Effect: Allow
            Action:
              - 'lambda:InvokeFunction'
            Resource: !Sub "${DemoAlarmsLambda.Arn}"
          - Effect: Allow
            Action:
              - 'logs:CreateLogGroup'
              - 'logs:CreateLogStream'
              - 'logs:PutLogEvents'
            Resource: arn:aws:logs:*:*:*
          - Effect: Allow
            Action:
              - 'dynamodb:DescribeStream'
              - 'dynamodb:GetRecords'
              - 'dynamodb:GetShardIterator'
              - 'dynamodb:ListStreams'
            Resource: !Sub "${demoAlarmDynamoDBTable.StreamArn}"
  # The Lambda. The function this is uesd by the db stream to handle the records
  DemoAlarmsLambda:
    Type: AWS::Lambda::Function
    Properties:
      FunctionName: DemoAlarmsLambdaFn
      Handler: index.handler
      Role: !GetAtt demoAlarmsRole.Arn
      Code:
        ZipFile: !Sub |
          // the lambda code goes here. See below
          // we used inline code for this demo
      Runtime: nodejs12.x
  # The trigger, DependsOn is important here. It must be setup after the Policy exists to ge the correct arns
  DemoAlarmsEventSourceMapping:
    Type: AWS::Lambda::EventSourceMapping
    Properties:
      BatchSize: 1
      EventSourceArn: !Sub "${demoAlarmDynamoDBTable.StreamArn}"
      FunctionName: !Sub "${DemoAlarmsLambda.Arn}"
      StartingPosition: "TRIM_HORIZON"
    DependsOn: "DemoAlarmsManagedPolicy"

The CloudFormation stack can be deployed and deleted using the following:

aws cloudformation deploy --template-file cloud/cloudformation/setup.yaml --stack-name demo-alarms-stack --capabilities CAPABILITY_NAMED_IAM
aws cloudformation delete-stack --stack-name demo-alarms-stack

The Lambda

The lambda will be responsible for intercepting the record from the stream and creating a suitable request to send to the mutation.

'use strict';
var AWS = require("aws-sdk");
const https = require('https');

exports.handler = (event, context, callback) => {

    event.Records.forEach((record) => {
        console.log('Stream record: ', JSON.stringify(record, null, 2));

        if (record.eventName == 'INSERT') {
            const myData = {
                "query": `
                mutation MyMutation($alarmId : String, $readingId : String!, $state : String){
                    createAlarm(input: {id : $alarmId, name : $readingId, state : $state}){
                        state
                        name
                        id
                        updatedAt
                        createdAt
                    }
                }
                `,
                "variables": {
                    "alarmId": record.dynamodb.NewImage.alarmId.S,
                    "readingId": record.dynamodb.NewImage.alarmId.S,
                    "state": record.dynamodb.NewImage.readingId.S,
                    "updatedAt": record.dynamodb.NewImage.datetime.S
                }
            };
            const data=JSON.stringify(myData)
            const options = {
                    host: 'dqunlwcy5fg5bkggtplzqdo6sq.appsync-api.eu-west-1.amazonaws.com',
                    path: '/graphql',
                    method: 'POST',
                    headers: {'Content-Type': 'application/json',
                        "X-Api-Key" : "<<apikey>>"}
                };

            var req = https.request(options, (res) => {
              res.setEncoding('utf8');
              console.log('Successfully processed HTTPS response');

              res.on('data', (d) => {
                console.log('data: ' + d);
                process.stdout.write(d);
              });
            });

            req.on('error', (e) => {
              console.error(e);
              //reject(e.message);
              console.log('SHTTPS response error');
            });
            // send the request
            req.write(data);
            req.end();
        }
    });
    callback(null, `Successfully processed records.`);
};

AWS AppSync - Schema - Resolvers

Points 4 and 5.

An important step in this process is to have a custom resolver to handle the incoming request from the lambda

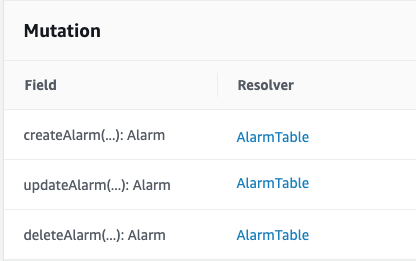

Let’s look at the default resolvers for the Mutation type:

The default resolver will point to the DynamoDB that was set up as part of the configure command

Let’s create a new DataSource that has a data source as None.

While in AWS AppSync, click on Data Sources from the left menu

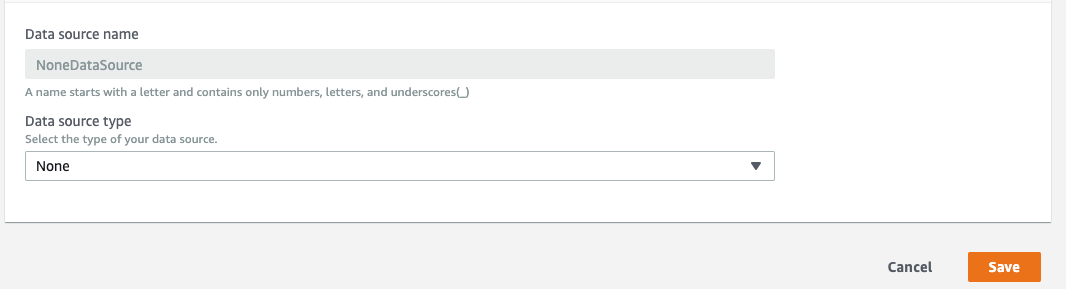

The new data source should look like this:

If we now go back to the Resolvers → Mutations, we can click on a resolver to change it to our new NoneDataSource.

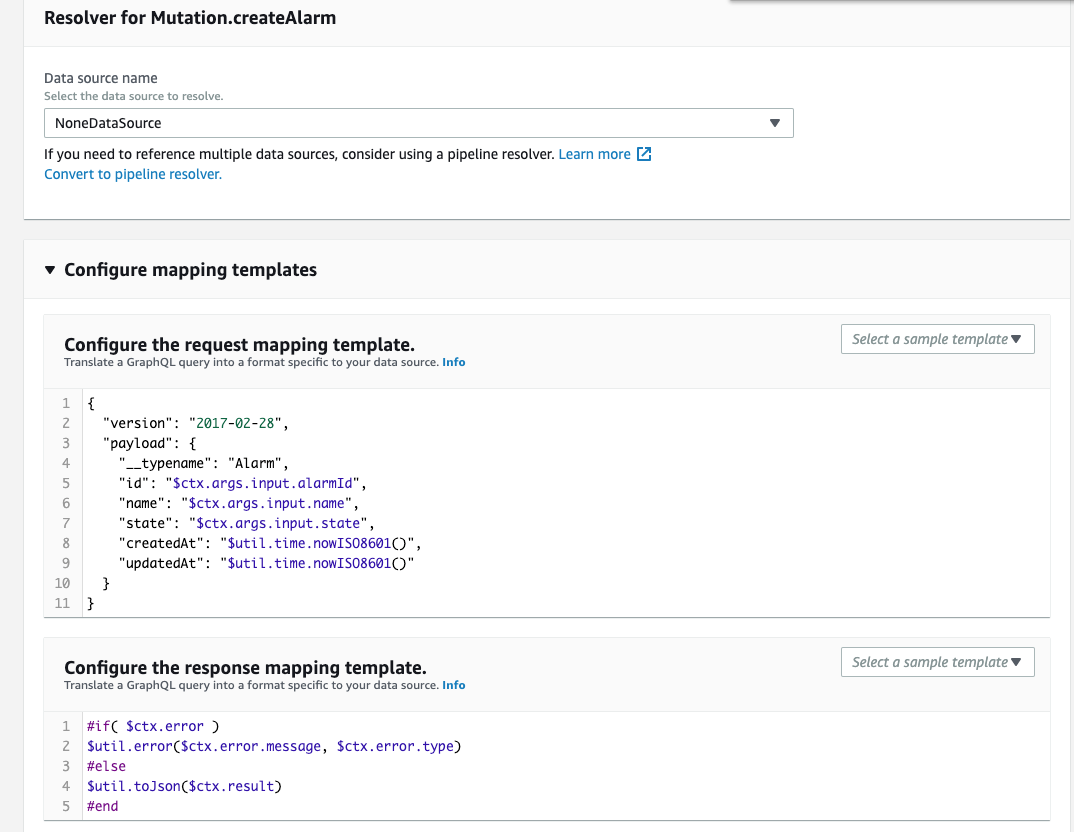

Our final resolver screen should look like this:

The mapping template should look like the following. It uses VTL (Velocity Template Language) syntax. See References for more details on the syntax/

{
  "version": "2017-02-28",
  "payload": {
    "__typename": "Alarm",
    "id": "$ctx.args.input.alarmId",
    "name": "$ctx.args.input.name",
    "state": "$ctx.args.input.state",
    "createdAt": "$util.time.nowISO8601()",
    "updatedAt": "$util.time.nowISO8601()"
  }
}

Now our Schema Mutations should look like this:

Push data to test

We can now push data to our new ‘external’ database and see the changes in the react-native view through the useState hook:

aws dynamodb put-item \
    --table-name DemoAlarms \
    --item alarmId={S="111-222-333-444"},datetime={S="2016-11-18:14:32:17"},readingId={S="12345"}

References

React-native - https://reactnative.dev/docs/getting-started

VTL reference - http://velocity.apache.org/engine/1.7/vtl-reference.html

Resolvers and VTL - https://docs.aws.amazon.com/appsync/latest/devguide/resolver-util-reference.html
